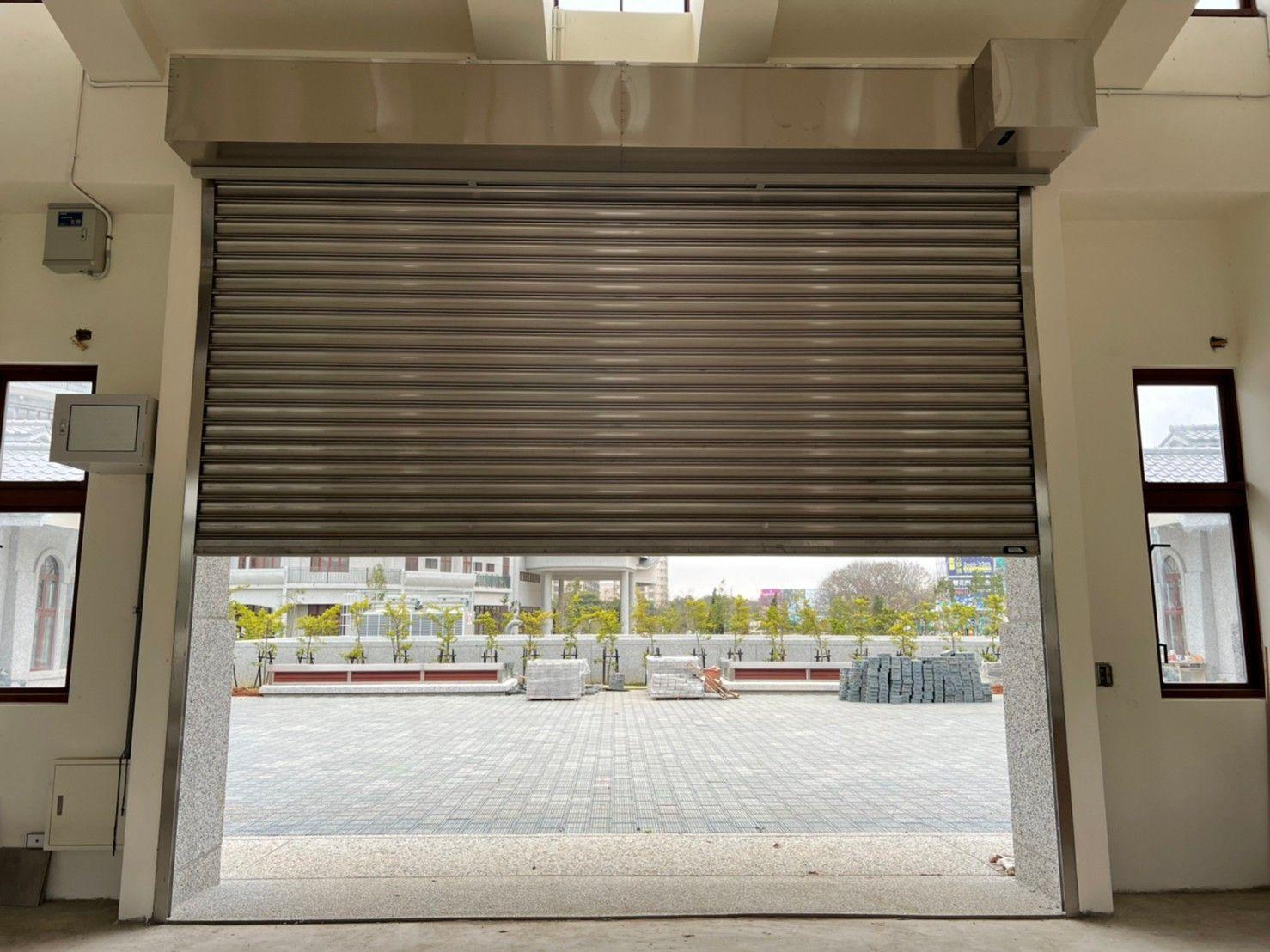

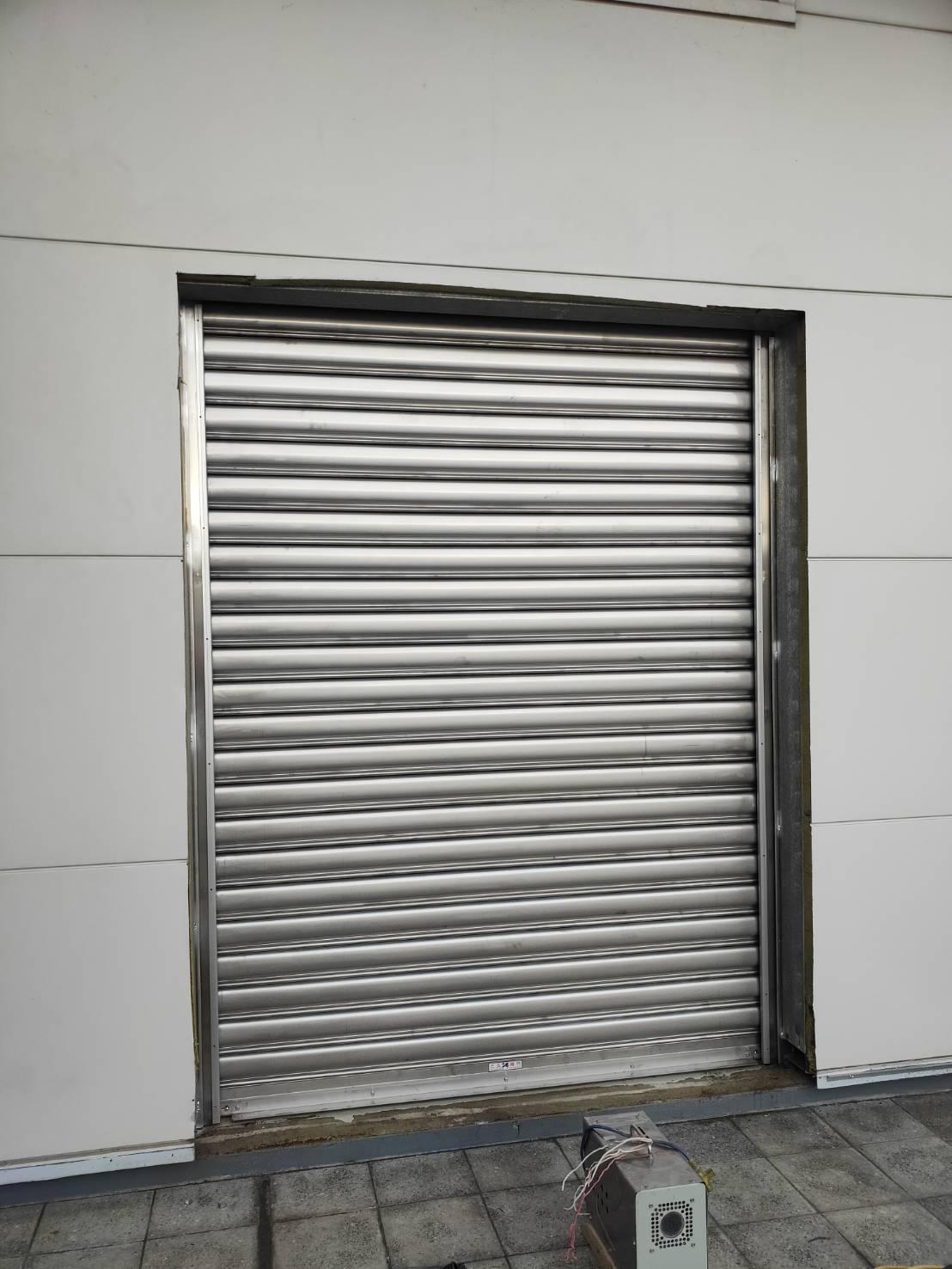

Security anti-theft control, fully enclosed and highly concealed, combined with wind-resistant design.
It is suitable for commercial offices, factories, schools, etc., or areas near the windward side.

＊Product Specifications:
The material used can be stainless steel/galvanized.
Roller door track/base/roller door box can use the same material, color, or mix with the door panel.
All iron parts are painted with powder paint, with a thickness of more than 50um and a hardness of H, instead of liquid paint.
(It aims to strengthen the anti-rust treatment of iron parts and increase the service life; and when the subsequent recycling is melted down, no toxic gas will be generated due to high temperature)

＊Door standard specification:
Stainless steel sheet and galvanized steel sheet, both 1.5mm thick
Resin steel plate, thickness 1.8mm
The door panel is equipped with an anti-typhoon hook design to prevent the door panel from derailing due to strong wind

＊Standard specification of reel box and rail
Commonly used standard specifications
Roll box: thickness is 0.8mm
Track: The standard thickness is 3mm; if the door width is more than 5m, the thickness of 4.5mm is used to strengthen
A noise reduction strip is installed in the track to improve the collision noise between the door and the door track due to strong wind

＊Standard specification of base angle iron:
Stainless steel specification is 50*50*3mm
The specification of galvanized steel sheet is 50*50*4mm

＊Certification:
The material is stainless steel, which complies with the relevant regulations of CNS-8499G3164.
The material is galvanized or painted steel plate, which conforms to the relevant regulations of CNS-1244G3027.
