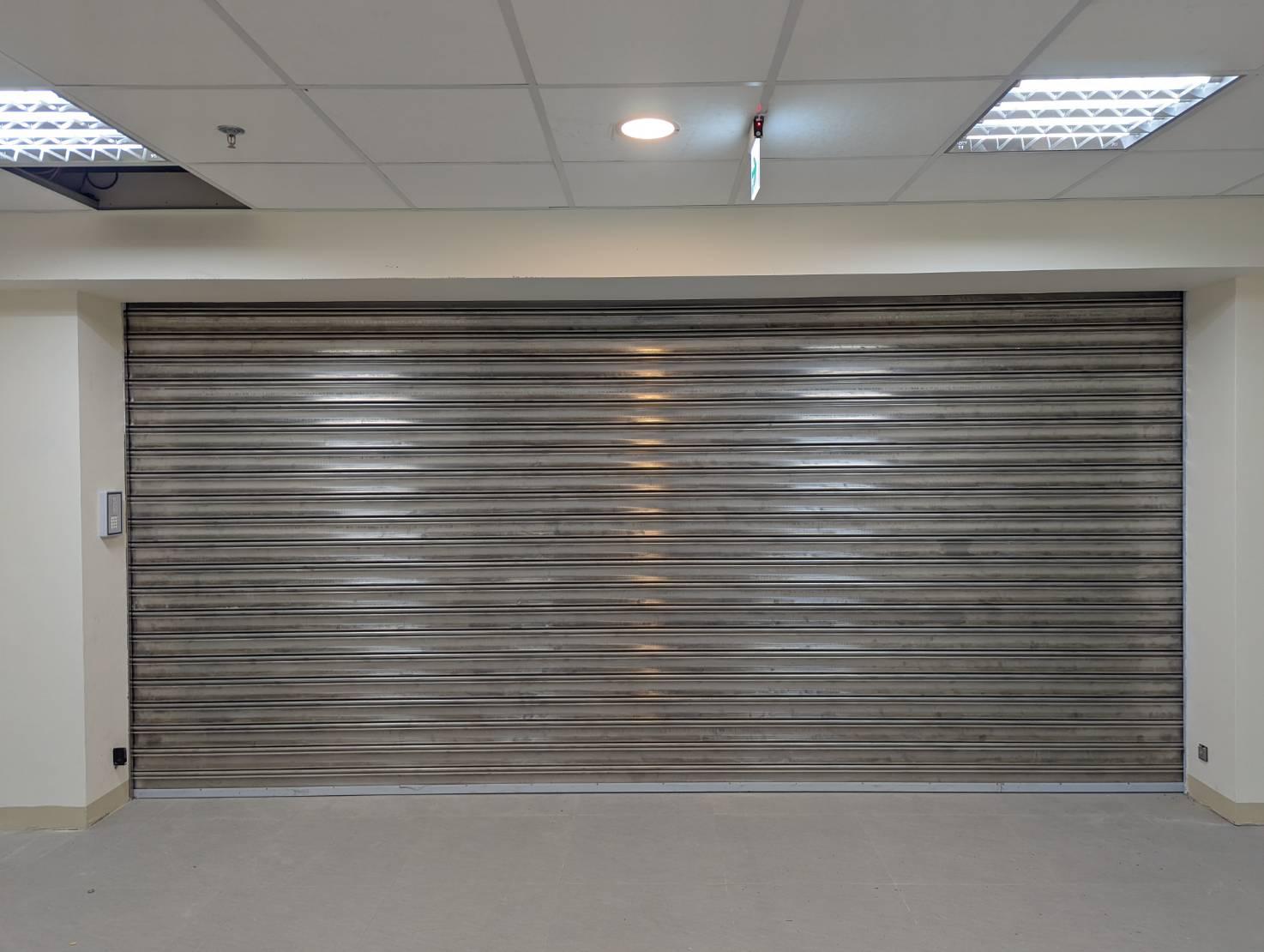

Fire Insulated Shutter
Fire Insulated Shutter
Model: SJ-303A/60A
Preview
Features
Item number SJ-303A/60A is equipped with one-hour thermal resistance and two-hour fire rating approved by Consturction and Planning Agency Ministry of the Interior. Also, it has passed the UL certificates of the United States.
Spec
Product Specifications:
The material used can be stainless steel or galvanized steel. Guide rails / bottom frame / headbox can be made of the same materials, colors, or mix and match. Instead of liquid paint, all iron parts are painted with powder coating, with over 50um thickness. (It aims to strengthen the anti-rust treatment of iron parts and increase the durability. when recycling scrap iron, there is almost no toxic gas generated due to high temperature) Slats specification:
Both stainless steel and galvanized steel are 1.0mm thickness ※The total thickness of slats for one hour thermal resistance = 5.5 cm Guide rails specification:
Thickness is 1.5mm. Headbox specification: Thickness is 1.0mm. Recommended installation location: Often applied to the entrance of the fire zone and interior area of buildings. It is not recommanded to be usedas a security door and rarely operated at non-emergency. Certification: Stainless steel complies with the relevant regulations of CNS-8499G3164. Galvanized or painted steel plate conforms to the relevant regulations of CNS-1244G3027.
The material used can be stainless steel or galvanized steel. Guide rails / bottom frame / headbox can be made of the same materials, colors, or mix and match. Instead of liquid paint, all iron parts are painted with powder coating, with over 50um thickness. (It aims to strengthen the anti-rust treatment of iron parts and increase the durability. when recycling scrap iron, there is almost no toxic gas generated due to high temperature) Slats specification:
Both stainless steel and galvanized steel are 1.0mm thickness ※The total thickness of slats for one hour thermal resistance = 5.5 cm Guide rails specification:
Thickness is 1.5mm. Headbox specification: Thickness is 1.0mm. Recommended installation location: Often applied to the entrance of the fire zone and interior area of buildings. It is not recommanded to be usedas a security door and rarely operated at non-emergency. Certification: Stainless steel complies with the relevant regulations of CNS-8499G3164. Galvanized or painted steel plate conforms to the relevant regulations of CNS-1244G3027.
