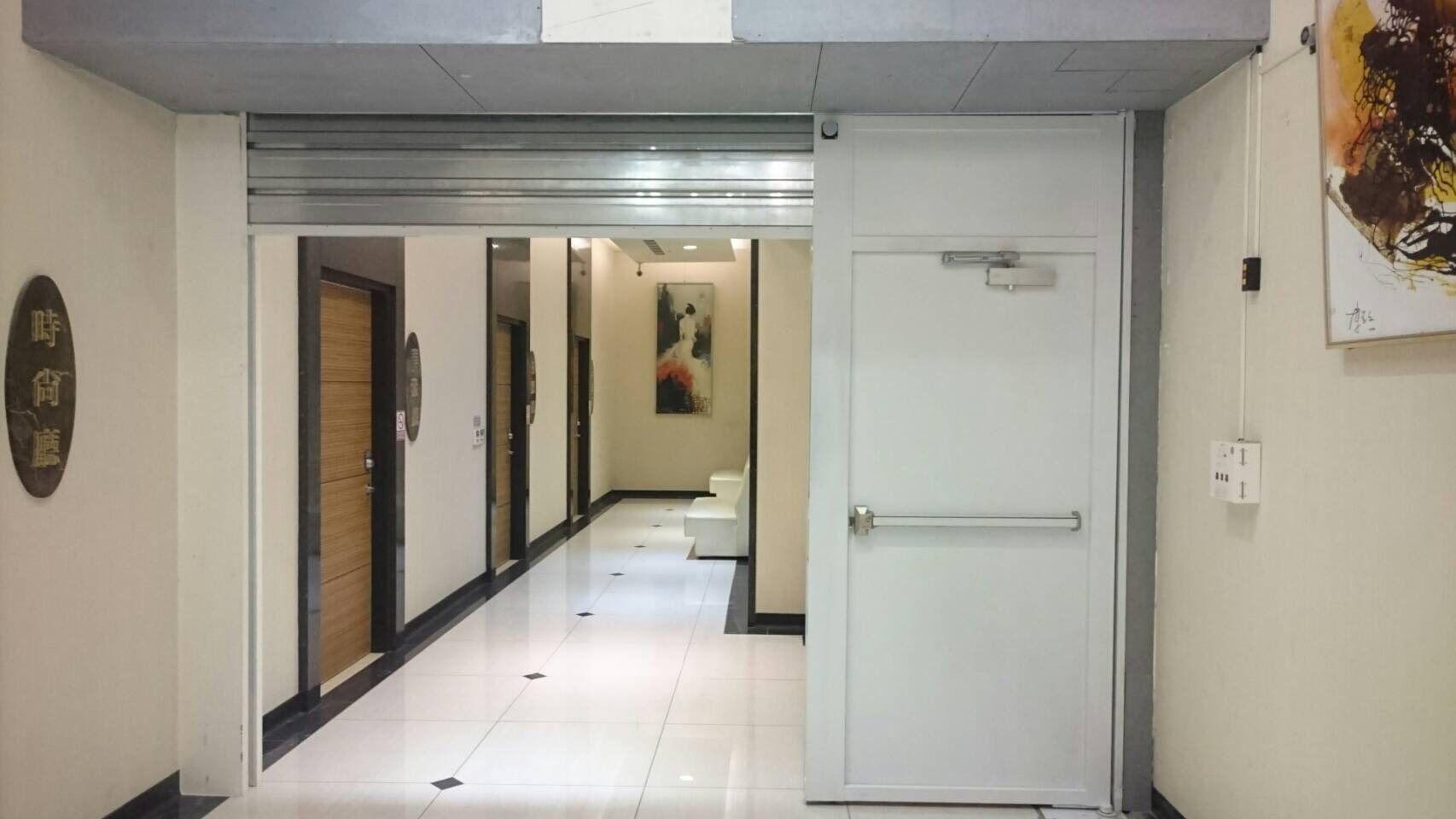

Fire Insulated and Smokeproof Shutter
Fire Insulated and Smokeproof Shutter
Model: SJ-303AS/60AS
Preview
Features
Item number SJ-303AS is provied with two-hour fire rating and one-hour thermal resistance and smoke protection approved by Consturction and Planning Agency Ministry of the Interior. Slats, guide rails and bottom frame are all equipped with smoke seals.
Spec
Product Specifications:
The material used can be stainless steel or galvanized steel. Guide rails / bottom frame / headbox can be made of the same materials, colors, or mix and match.
Instead of liquid paint, all iron parts are painted with powder coating, with over 50um thickness. (It aims to strengthen the anti-rust treatment of iron parts and increase the durability. when recycling scrap iron, there is almost no toxic gas generated due to high temperature) Slats specification:
Both stainless steel and galvanized steel are 1.0mm thickness. ※The total thickness of slats for one hour thermal resistance = 5.5 cm Guide rails specification:
Thickness is 1.5mm Headbox specification:
Thickness is 1.0mm Recommended installation location:
Often applied to the entrance of the fire zone and interior area of buildings. It is not recommanded to be usedas a security door and rarely operated at non-emergency. Certification: Stainless steel complies with the relevant regulations of CNS-8499G3164. Galvanized or painted steel plate conforms to the relevant regulations of CNS-1244G3027.
The material used can be stainless steel or galvanized steel. Guide rails / bottom frame / headbox can be made of the same materials, colors, or mix and match.
Instead of liquid paint, all iron parts are painted with powder coating, with over 50um thickness. (It aims to strengthen the anti-rust treatment of iron parts and increase the durability. when recycling scrap iron, there is almost no toxic gas generated due to high temperature) Slats specification:
Both stainless steel and galvanized steel are 1.0mm thickness. ※The total thickness of slats for one hour thermal resistance = 5.5 cm Guide rails specification:
Thickness is 1.5mm Headbox specification:
Thickness is 1.0mm Recommended installation location:
Often applied to the entrance of the fire zone and interior area of buildings. It is not recommanded to be usedas a security door and rarely operated at non-emergency. Certification: Stainless steel complies with the relevant regulations of CNS-8499G3164. Galvanized or painted steel plate conforms to the relevant regulations of CNS-1244G3027.
