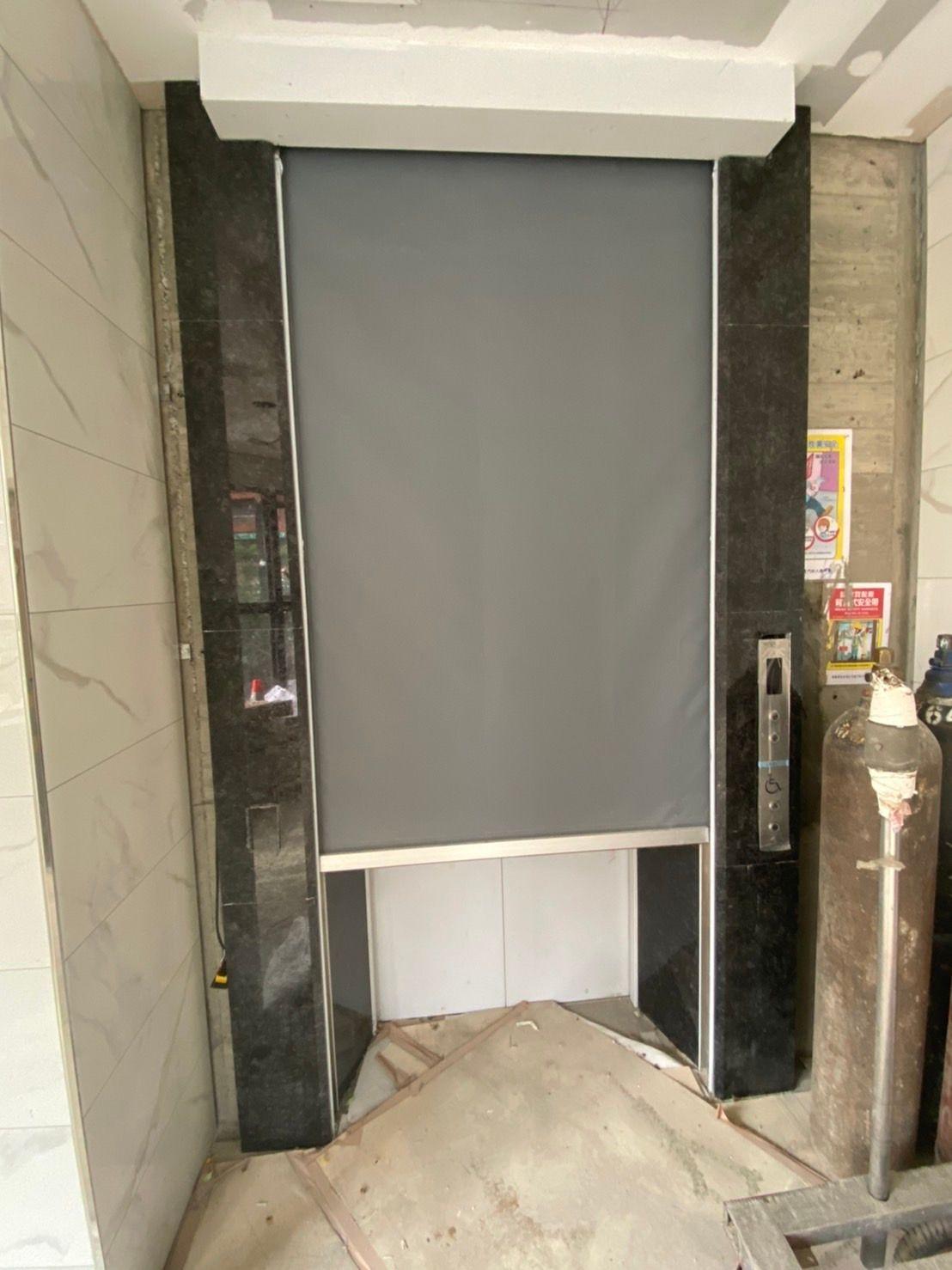

Smokeproof Shutter
Smokeproof Shutter
Model: SJ-303S
Preview
Features
Item number SJ-303S is equipped with one-hour smoke protection approved by Consturction and Planning Agency Ministry of the Interior.
Spec
Product Specifications:
The curtain is coated with Teflon on the glass fiber surface, the thickness is 4.5mm (single layer), the tubular motor is used, and the base is aluminum alloy. Instead of liquid paint, all iron parts are painted with powder coating, with over 50um thickness. (It aims to strengthen the anti-rust treatment of iron parts and increase the durability. when recycling scrap iron, there is almost no toxic gas generated due to high temperature) Size: 3m x 3m
Guide rails specification:
Both stainless steel and galvanized steel are 1.5mm thickness. Headbox specification:
Both stainless steel and galvanized steel are 0.8mm thickness. Certification: Stainless steel complies with the relevant regulations of CNS-8499G3164. Galvanized or painted steel plate conforms to the relevant regulations of CNS-1244G3027.
The curtain is coated with Teflon on the glass fiber surface, the thickness is 4.5mm (single layer), the tubular motor is used, and the base is aluminum alloy. Instead of liquid paint, all iron parts are painted with powder coating, with over 50um thickness. (It aims to strengthen the anti-rust treatment of iron parts and increase the durability. when recycling scrap iron, there is almost no toxic gas generated due to high temperature) Size: 3m x 3m
Guide rails specification:
Both stainless steel and galvanized steel are 1.5mm thickness. Headbox specification:
Both stainless steel and galvanized steel are 0.8mm thickness. Certification: Stainless steel complies with the relevant regulations of CNS-8499G3164. Galvanized or painted steel plate conforms to the relevant regulations of CNS-1244G3027.
